A213-T5-tube

Type:ASTM A213 T5 Steel pipe
Standard:ASTM A335 ,ASTM A213, ASTM A691,DIN17175 JIS G3458
Dimension: 1/2in to 48in
Feature:Stock regular sizes, Customized forge, design as per ASME VIII
OEM service, Customized heat treatment available.
分类: , 标签: ,

描述

Standard Specification For Alloy Steel Pipes & Tubes

Specifications : ASTM A / ASME SA335, A213, A691

Standard : ASTM, ASME and API

Pipes Size : 1 / 8NB TO 26NB

Tubing Size : 1 / 2” OD up to 5” OD, customs diameters also available

Outer Diameter : 6-2500mm; WT:1-200mm

Thickness : 0.3mm – 50 mm

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Types : Seamless / EFW / Fabricated

Length : Single Random, Double Random & Required Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded

Grades : ASTM A335 Gr. P5, P9, P11, P12, P21, P22 & P91, ASTM A213 – T5, T9, T11, T12, T22, T91, ASTM A691.

ASME SA335 / SA213 Alloy Steel Pipe & Tubing Available Types
Alloy Steel PipesAlloy Steel Tubes
Alloy Steel ASTM A335 P1 Seamless PipesAlloy Steel ASTM A213 T1 Seamless Tube
ASTM A335 P9 Alloy Steel Seamless PipesA213 T5 Alloy Seamless Tubing
A335 P11 Alloy Seamless Pipe SuppliersASTM A213 T5b Alloy Tube
Chrome Moly P12 Pipes DealerAlloy Steel A213 T5c Tubing Exporter
A335 P22 Alloy Pipes StockholderASTM A213 T11 Alloy Seamless Tube Distributors
Chrome Moly Alloy Steel TubingAlloy Steel P22 Pipes Manufacturer
ASME SA335 P23 Seamless PipeASTM A213 T12 Alloy Tube
ASTM A335 Chrome Moly PipeASME SA213 T22 Alloy Seamless Tube
ASTM/ASME A691 GRADE 1CR 11/4CR 21/4CR Alloy EFW PipeT23 Alloy Steel Tubes Stockist
ASTM A691 GRADE 91 Alloy Steel PipesASME SA213 T92 Alloy Steel EFW Tube
Chrome Moly Alloy Steel TubingASME SA335 P92 Alloy Steel Seamless Pipe

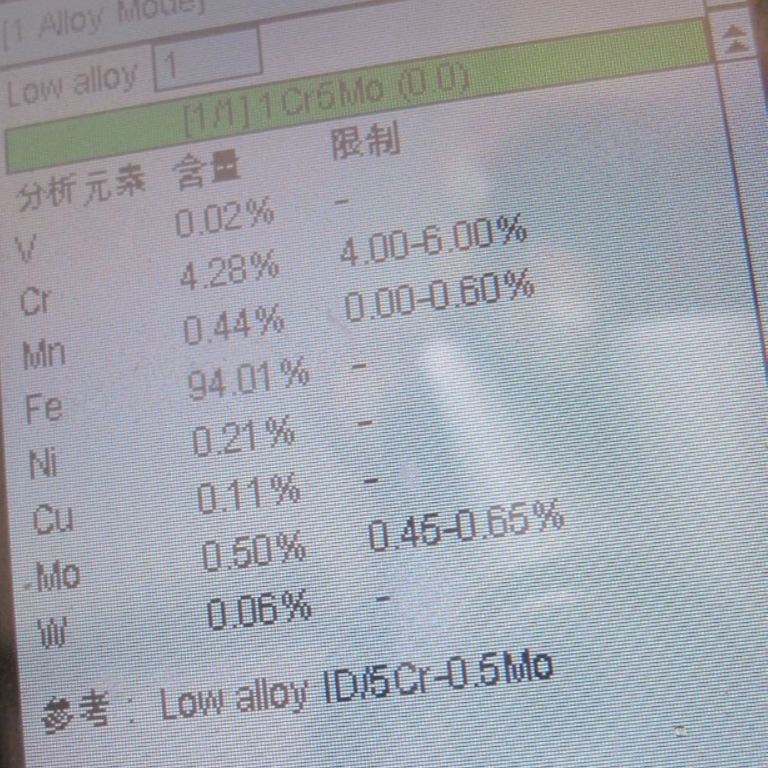

Chemical Compositions :
C, %Mn, %P, %S, %Si, %Cr, %Mo, %
0.015 max0.30-0.600.025 max0.025 max0.50 max4.00-6.000.45-0.65
Mechanical Properties :
Tensile Strength, MPaYield Strength, MPaElongation, %
415 min205 min30 min
Heat Treatment Requirements :

P5, P9, P11, and P22

Grade

Heat Treatment Type

Normalizing Temperature Range F [C]

Subcritical Annealing
or Tempering
Temperature Range F
[C]

P5 (b,c)

Full or Isothermal Anneal

Normalize and Temper

*****

1250 [675]

Subcritical Anneal (P5c only)

*****

1325 - 1375 [715 - 745]

P9

Full or Isothermal Anneal

Normalize and Temper

*****

1250 [675]

P11

Full or Isothermal Anneal

Normalize and Temper

*****

1200 [650]

P22

Full or Isothermal Anneal

Normalize and Temper

*****

1250 [675]

P91

Normalize and Temper

1900-1975 [1040 - 1080]

1350-1470 [730 - 800]

Quench and Temper

1900-1975 [1040 - 1080]

1350-1470 [730 - 800]

Tensile Requirements :
Seamless
P-5P-9P-11P-22P-91P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].
Tensile   Strength, min.,   psi
ksi6060606085
MPa415415415415585
Yield Strength,   min., psi
ksi3030303060
MPa205205205205415
Wall Thickness :
NPS [DN] DesignatorTolerance, % from Specified
OverUnder
1/8 to 2 1/2 [6 to 65] incl., all t/D ratios20.0%12.5%
Above 2 1/2  [65], t/D < or = 5%22.5%12.5%
Above 2 1/2  [65], t/D > 5%15.0%12.5%
(t = Specified Wall Thickness; D = Specified Outside   Diameter)
