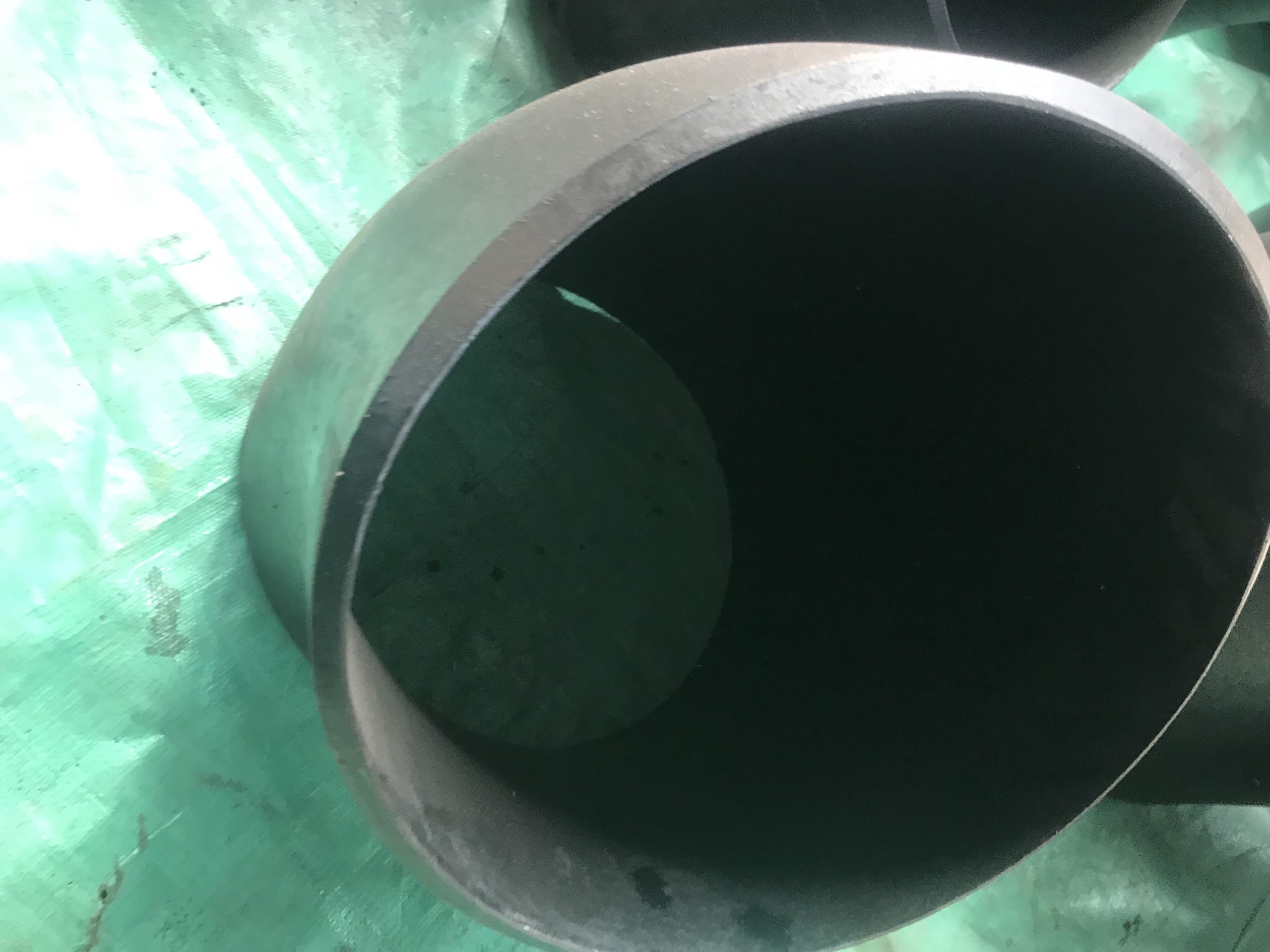

ASTM A234 WP9 Alloy Steel Elbows

ASTM A234 is Standard Specification for wrought or forging steel pipe fittings includes carbon and alloy steel material for moderate and high temperature services. These pipe fittings include Tee, Concentric reducer, eccentric Reducer, 5D/6D bend, elbow, unions, plugs, cross tee, pipe cap and nipple, ect for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.

Click here to preview the material pdf file.

Specification

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : Elbow, 45 Deg Elbow, Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow.

ASTM A234 WP9 Alloy Steel Elbows

ASTM A234 WP9-S Alloy 45DEG LR Elbows

ASTM A234 WP9 Alloy Steel Elbows

What is Buttweld 45 Deg Elbow?

Buttweld 45 Deg Elbow is a pipe fitting used to change the direction of the pipe by 45 degrees. It has a smooth interior surface that helps reduce turbulence & pressure loss in fluid or gas flow.

What are the benefits of the Buttweld 45° Pipe Elbows?

The benefits of the Buttweld 45° Pipe Elbows include their ability to provide a smooth and efficient fluid or gas flow. They also have excellent strength & durability, making them suitable for high pressure & high temperature applications. Additionally, they are easy to install & require minimal maintenance.

What is B16.9 Long Radius Elbow used for?

B16.9 Long Radius Elbow is used in applications where a smooth and efficient flow of fluid or gas is required. It is commonly used in pipelines, heat exchangers, and pressure vessels in oil and gas, chemical processing & power generation industries. Its longer radius helps to reduce friction and turbulence, which can help extend the pipeline's lifespan & reduce maintenance costs.

ASTM A234 WP9 Alloy Steel Elbows

ASTM A234 WP9-S Alloy 45DEG LR Elbows Marking

ASTM A234 WP9 Alloy Steel Elbows

ASTM A234 WP9 chemical composition:

C Mn P S Si Cr Mo
≤0.15 ≤0.6 ≤0.03 ≤0.03 1.0 8-10 0.9-1.10

ASTM A234 WP9 mechanical property:

Tensile Strength Yield Strength (0.2%Offset) Elongation Hardness
380 Mpa 585 Mpa ≥30 217HB

ASME B16.9 Buttweld 45 Degree Elbow Available Types

Buttweld Elbow 45 Degree Butt Weld Long Radius 45 Degree Elbows
Steel Pipe Elbow 45° Short Radius Elbow
ASME B16.9 45 deg Long Radius Elbow Schedule 10 45 Degree Elbow
Stainless Steel 45 Degree Pipe Elbow Suppliers SS 45 Deg. Elbows
ANSI B16.9 45 Degree Buttweld Elbow Dealer ASME B16.28 Buttweld 45 Degree Elbow Exporter
Welded 45 Deg Elbow Stockholder Seamless 45° Pipe Elbow Distributors
Carbon Steel 45deg.Elbow High Quality 45° Elbow Manufacturer
ASTM A403 Stainless Steel 45 Deg Elbows Duplex Steel 45° Pipe Elbow
Super Duplex Steel 45 Deg Elbow Copper Nickel 45 Deg Elbow
High Nickel Alloy 45° Elbow Hastelloy 45° Pipe Elbow Stockist
Titanium 45 Degree Elbow Inconel Butt weld 45 Deg Pipe Elbow

ASTM A234 WP9 Alloy Steel Elbows

Buttweld 45 Deg. Elbow Application

ASME B16.9 45 Degree Elbow are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld 45 Degree Elbow through a worldwide network of stock-keeping branches. These 45Deg. Buttweld Elbow is use in various industries like :

  • 45° Degree Elbow uses in General Purpose Applications
  • 45° Elbow uses in Paper & Pulp Industry
  • 45° Buttweld Elbow uses in Food Processing Industry
  • 45 Degree Buttweld Elbow uses in Water Supply Systems
  • 45° Buttweld Pipe Elbow uses in Chemical Industry
  • ANSI B16.9 Buttweld 45° Pipe Elbow uses in Power Plant
  • Alloy Steel 45° Elbow uses in Plumbing
  • Stainless Steel 45° Buttweld Elbow uses in Oil and Gas Pipeline
  • Buttweld 45 Degree Pipe Elbow uses in Heating
  • Buttweld 45° Long Radius Elbow uses in Fabrication Industry
  • Buttweld 45° Short Radius Elbow uses in Structural Pipe

For more product videos, please visit our Youtube page - pipefittingflange

The alloy steel ASTM A234 WP9 pipe fittings offer a wide of industrial application like chemical equipments, boiler and exchanger manufacturing, mining, refineries, utilities, oil refineries and many others. C&N HongCheng are acknowledged as the manufacturer, supplier and exporter of Cr-Mo WP9 fittings provides the different range of materials sizes, finish and metric dimensions.

Contact us for a quoe!
