Key Specifications
Type: Weldoutlet
Material: A182 F22 CL.1
Standard: MSS SP-97
Wall Thickness: SCH80 x SCH40
Size: 10 Inch X 4 Inch
Weldolet is one of the most common branch fittings,which is welded onto the outlet pipe. The ends are bevelled to facilitate this process, and therefore the weldolet is considered a butt-weld fitting. Weldolet are designed to minimize stress concentrations and provide integral reinforcement. MSS SP 97 ASTM A182 F22 Weldolet
There are 3 types of O-lets: weldolet, threadolet, and sockolet.
MSS SP 97 ASTM A182 F22 Weldolets
A pipe weldoutlet makes a 90° branch connection and – comes in full size or reducing for a straight piece of pipe. A weldoutlet is designated by the run length by the branch length. For example a 1-inch weldoutlet on a 1-inch pipe would be a 1 X 1 Weldoutlet. A weldoutlet is designed to minimize stress concentrations and provide integral reinforcement without the need for reinforcing the weld.
Weldolet means butt weld connection with the pipes. threadolet has a threaded connection, and the sockolet has a socket weld connection. In addition to these three common styles, there are also elbolets, nippolets, laterolets,Flangeolet. MSS SP 97 ASTM A182 F22 Weldolet
Product Description
| Type |
A182 F22 Weldolet |
| Size | 1/2″ ~ 60″ |
| Thickness | SCH40-SCH160 |
| Standard | ASME, MSS SP97 |
| Material | Carbon steel: ASTM A105, A105N, A350LF2,Stainless steel:ASTM A182 F304, F304L,F316,F316L, F317L, F321, F321H, F347, F347H, F310, F44F51,S31803, A182, F43,UNS S32750
Line Pipe: ASTM A694 F42,F46,F52,F56,F60,F65,F70, Alloy steel: A182 F12,F11,F22,F5,F9,F91,ECT Special Material: Monel, Duplex S.S, Alloy, Inconel, 904L etc MATERIALS : |
| Available type | weldolet,threadolet,sockolet |
| Application | petroleum, chemical industry, medicine, electric power, astronautics, war industry, fire prevention, metallurgy, shipbuilding, fuel gas, nuclear electricity, urban construction, hot-water heat and environmental protection etc. |
-
- MSS SP 97 ASTM A182 F22 Weldolet PMI Test
-

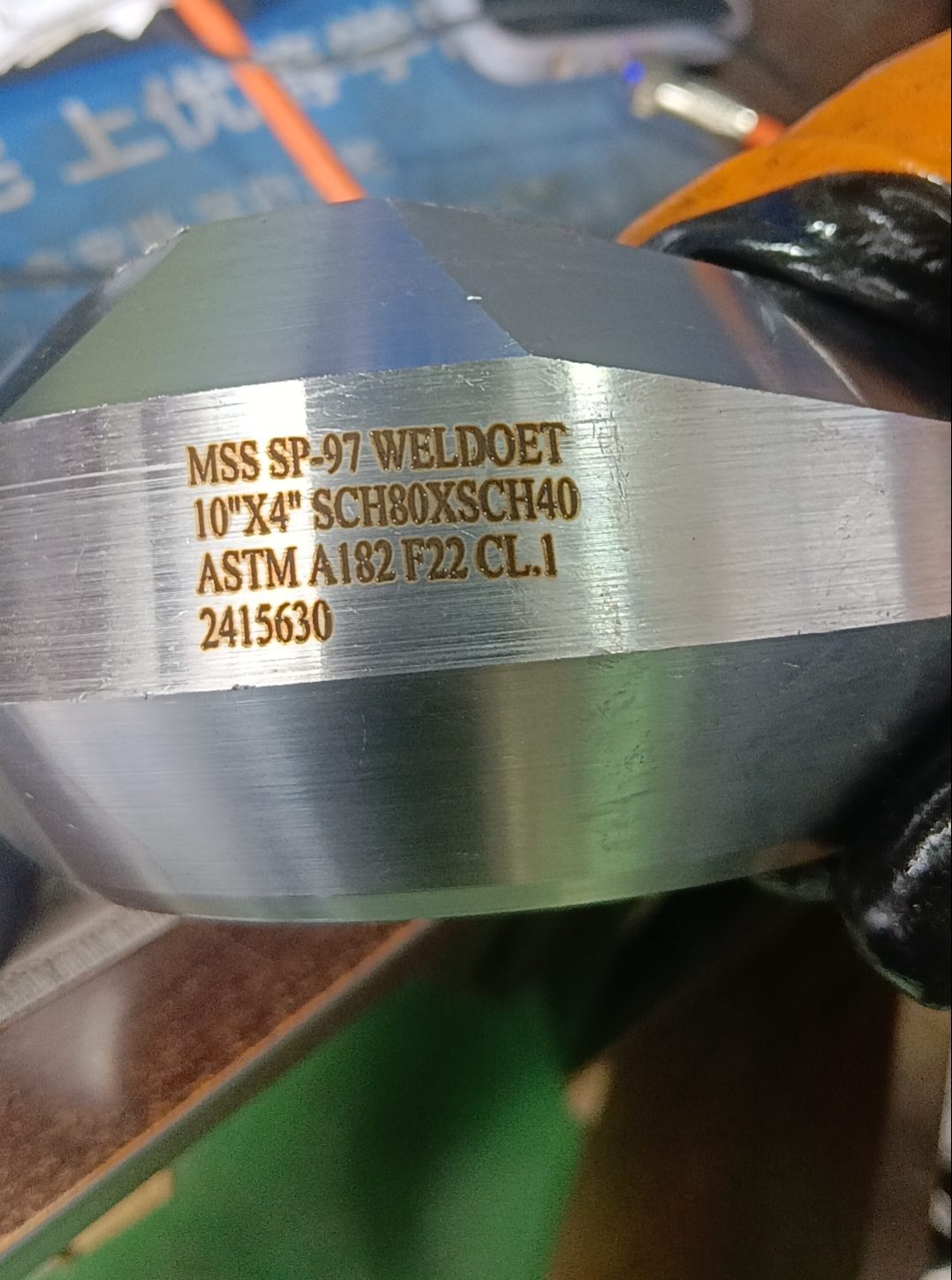

- MSS SP 97 ASTM A182 F22 Weldolet Marking
