Description

Chinese ASTM A234 WP11 Pipe Cap Manufacturer C&N Provides ASTM A234 WP11 Cap, ANSI B16.9, Size DN400, Schedule 100, Butt Weld Ends.

What Is A234 WP11 Material?

The ASTM A234 WP11 covers standard specifications for steel pipe fittings that are suitable for moderate to high temperatures. ASTM A234 WP11 fittings are versatile devices that are designed to characterize the flow in the system. These fittings are a chrome-moly grade that gives it enhanced resistance to reducing and corrosive media. The WP11 Fittings are designed to work in the oil and gas industries. These a234 WP11 fittings help in impacting the movement of gaseous and fluid media.

The A234 WP11 material can be designated into three classes. The material has a tensile strength between 415 to 585 mpa and possesses a minimum yield strength of 205 MPa. They can be easily elongated by 20% in the system.

What is ASME B16.9 Cap?

ASME B16.9 Cap act as defensive devices and are planned to secure ANSI B16.9 cap of different shapes. The main reason for utilizing ASME B16.9 Cap is to waterproof the associations. They are too utilized to shut the closes of water-powered or pneumatic channels and tubes. SS End Caps are utilized within the plumbing device of residential, commercial and mechanical water supply lines, machinery and preparing hardware, etc. They are moreover fitted on water pump lines with the sole reason for expelling air blocks.

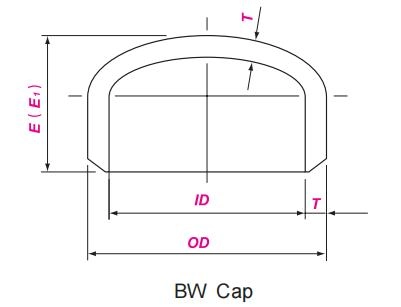

Dimension of ASME B16.9 Cap

DN NPS OD E E1
15 1/2 21.3 25 25
20 3/4 26.7 25 25
25 1 33.4 38 38
32 1 1/4 42.2 38 38
40 1 1/2 48.3 38 38
50 2 60.3 38 44
65 2 1/2 73 38 51
80 3 88.9 51 64
90 3 1/2 101.6 64 76
100 4 114.3 64 76
125 5 141.3 76 89
150 6 168.3 89 102
200 8 219.1 102 127
250 10 273 127 152
300 12 323.8 152 178
350 14 355.6 165 191
400 16 406.4 178 203
450 18 457 203 229
500 20 508 229 254
550 22 559 254 254
600 24 610 267 305
650 26 660 267 ---
700 28 711 267 ---
750 30 762 267 ---
800 32 813 267 ---
850 34 864 267 ---
900 36 914 267 ---
950 38 965 305 ---
1000 40 1016 305 ---
1050 42 1067 305 ---
1100 44 1118 343 ---
1150 46 1168 343 ---
1200 48 1219 343 ---

Butt weld Cap Specification

Size Range 1/2" - 80" / DN15 - 2000
Thickness Schedule SCH 10,SCH 10S, SCH 20, SCH 40,SCH 40S, STD, XS,SCH 80, SCH 80S, SCH 100, SCH 120, SCH 160, XXS
China Standard GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409
America Standard ANSI / ASME B16.9 / MSS SP 43
Japan Standard JIS B2311/2312/2313
Europe Standard EN10253
Carbon Steel Q235, 20#, 35#, 45#, 20G,ASTM A234 WPB/WPC
Low Temp Carbon Steel Q345B, 16Mn, ASTM A420 WPL6
Pipeline Steel ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel ASTM A403 WP304/304L/304H, 316/316L, 310S, 321, 317,347,904L
Duplex Stainless Steel ASTM A815 S32205, S31803, 32750, 32760

Contact us today to get a quotation!
