ASTM A234 WP91 Type2 90° Long Radius Elbow (NPS 1-1/2 XS)

Description

ASTM A234 WP91 Type2 90° Long Radius Elbow (NPS 1-1/2 XS)

Product Specification

• Material Standard: ASTM A234 / ASME SA234 WP91 Type2
• Dimension Standard: ASME B16.9
• Product Type: 90° Long Radius (R=1.5D) Seamless Butt Weld Elbow
• Nominal Size: NPS 1-1/2 (DN40)
• Wall Thickness: XS (Extra Strong)
• Heat Number: F018024
• Inspection Status: HT/AU (Heat Treated / Annealed & Ultrasonic Tested)

Product Overview

This batch of ASTM A234 WP91 Type2 90° long radius elbows is manufactured by C&N Hongcheng, a leading alloy steel pipe fitting manufacturer with over 30 years of experience. WP91 is a modified 9Cr-1Mo-V chromium-molybdenum-vanadium alloy steel that offers exceptional creep strength and oxidation resistance at elevated temperatures up to 650°C (1200°F).

"Type2" indicates the fitting is manufactured from plate or forging stock and is subject to specific heat treatment and impact testing requirements for enhanced toughness, making it ideal for critical high-temperature and high-pressure applications.

Various forging and shaping operations can be performed on Alloy Steel Grade WP91 fittings. These fittings can be treated by hammering, upsetting, rolling, bending, pressing, piercing, extruding, fusion welding, or machining, either individually or by using a combination of two or more of these processes. The forming procedure must not allow for the formation of any injurious imperfections in the fittings. To prevent defects caused by rapid cooling, fittings such as the ASTM A234 Grade WP91 elbow must be cooled below the critical range under suitable conditions after forming them at an elevated temperature. However, special care must be taken to ensure that the cooling rate of the A234 WP91 equivalent is not faster than the cooling rate while still in the air.

Chemical Composition (wt%)

Element	C	Mn	Si	Cr	Mo	V	Nb	N
Standard Range	0.08-0.12	0.30-0.60	0.20-0.50	8.00-9.50	0.85-1.05	0.18-0.25	0.06-0.10	0.03-0.07

Mechanical Properties

Property	Value
Tensile Strength	≥585 MPa
Yield Strength	≥415 MPa
Elongation	≥20%
Hardness	187-250 HBW

ASTM A234 WP91 Hardness

All fittings of Grade WP91 Type 1 and Type 2  shall be hardness tested and shall have a hardness of 190 HBW-250 HBW.

Marking:Standard/ As per request

Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
Document: MTC EN10204-3.1 can be provided prior to shipment

ASTM A234 WP91 Heat Treatment

Except when Supplementary Requirement S1 is specified by the purchaser, Grade WP91 Type 1 and Type 2 shall benormalized at 1900 °F [1040 °C] minimum, and 1975 °F [1080°C] maximum, and tempered in the temperature range of 1350°F [730 °C] to 1470 °F [800 °C] as a final heat treatment. 7.3.6

Quality Control

C&N Hongcheng operates an ISO 17025 certified laboratory and implements a 100% full inspection system for this batch of elbows:

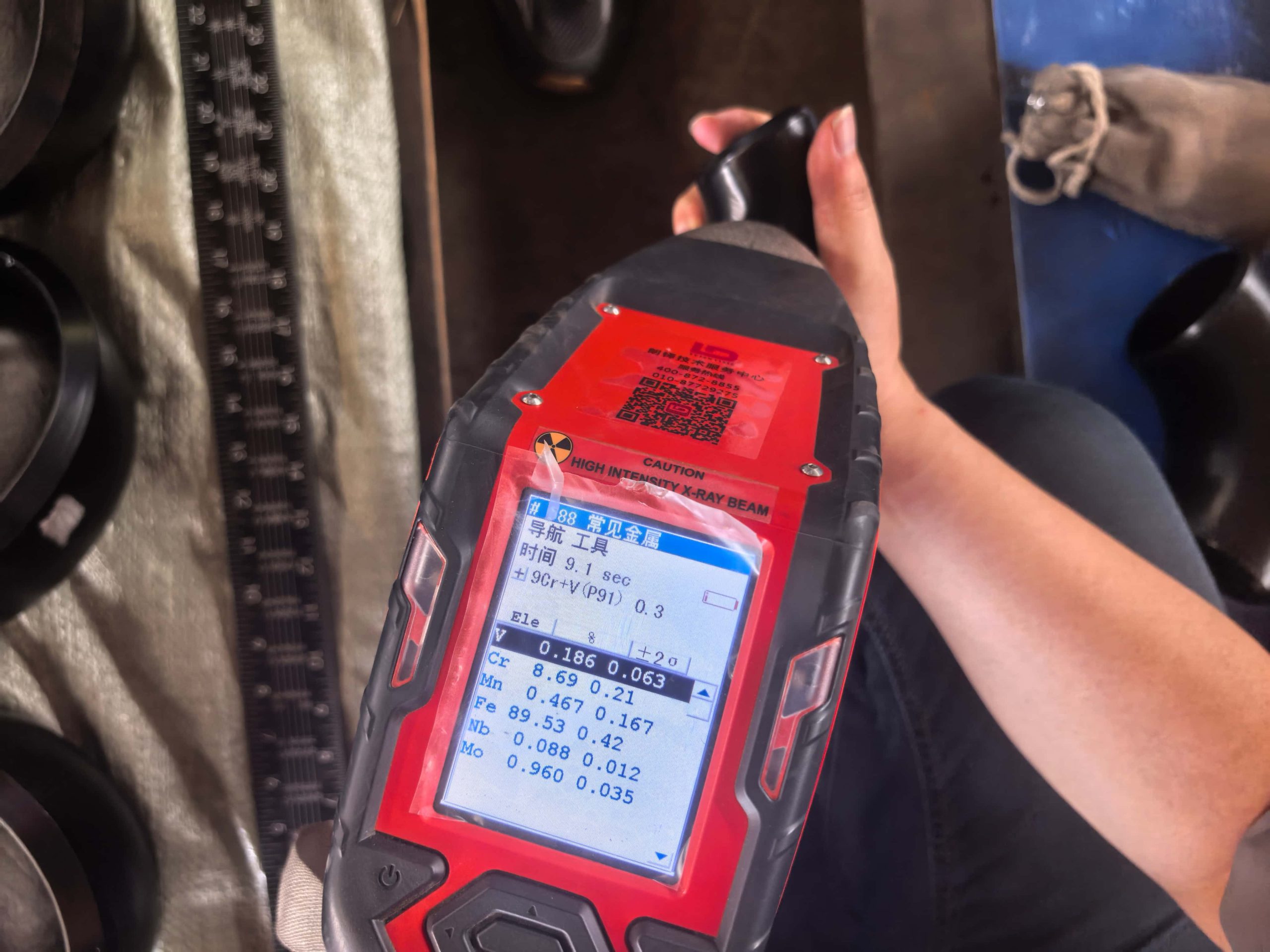

1. PMI XRF Test: Verified alloy composition of both the elbow body and base material

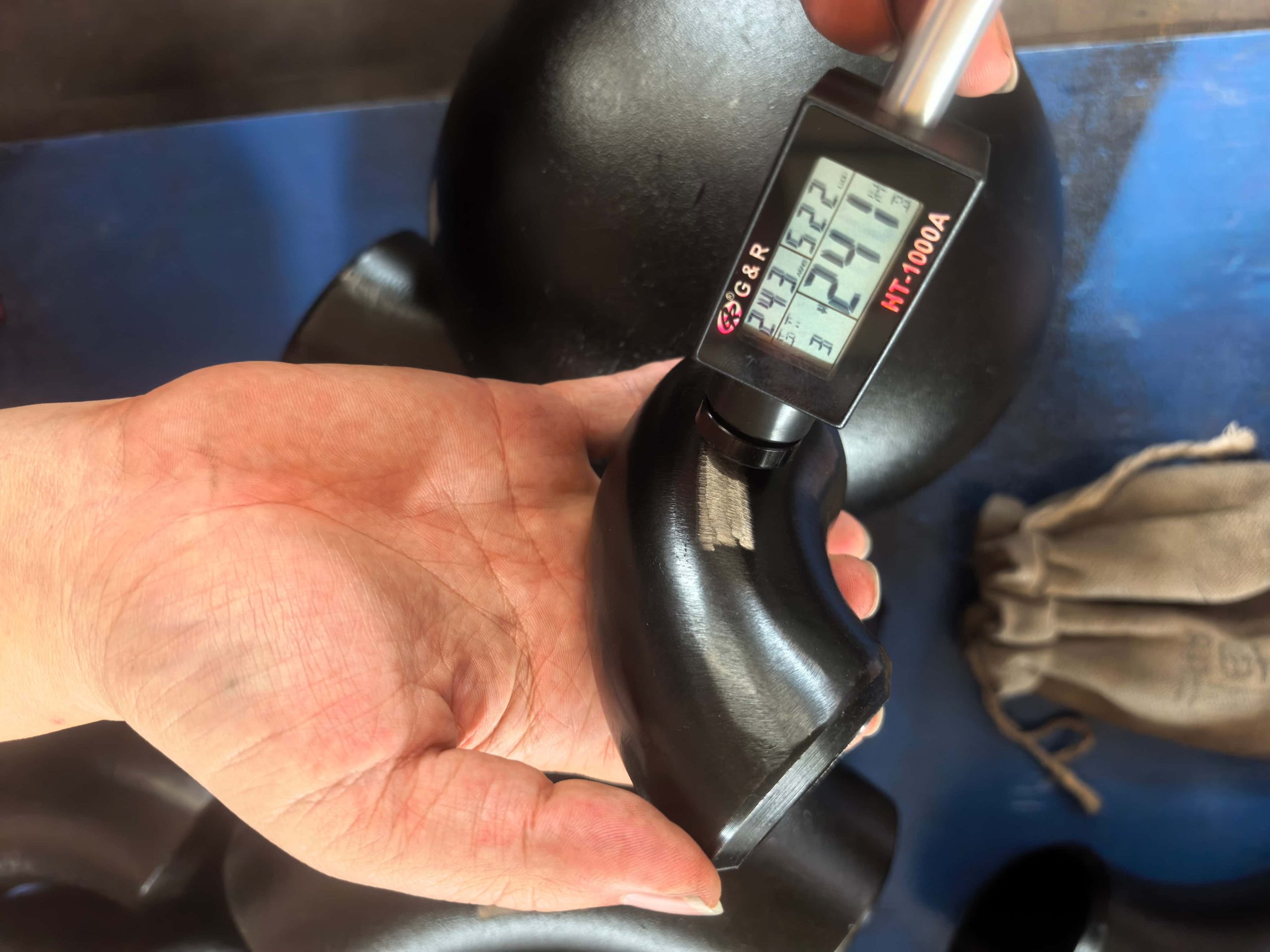

2. Hardness Test: Confirmed proper heat treatment results

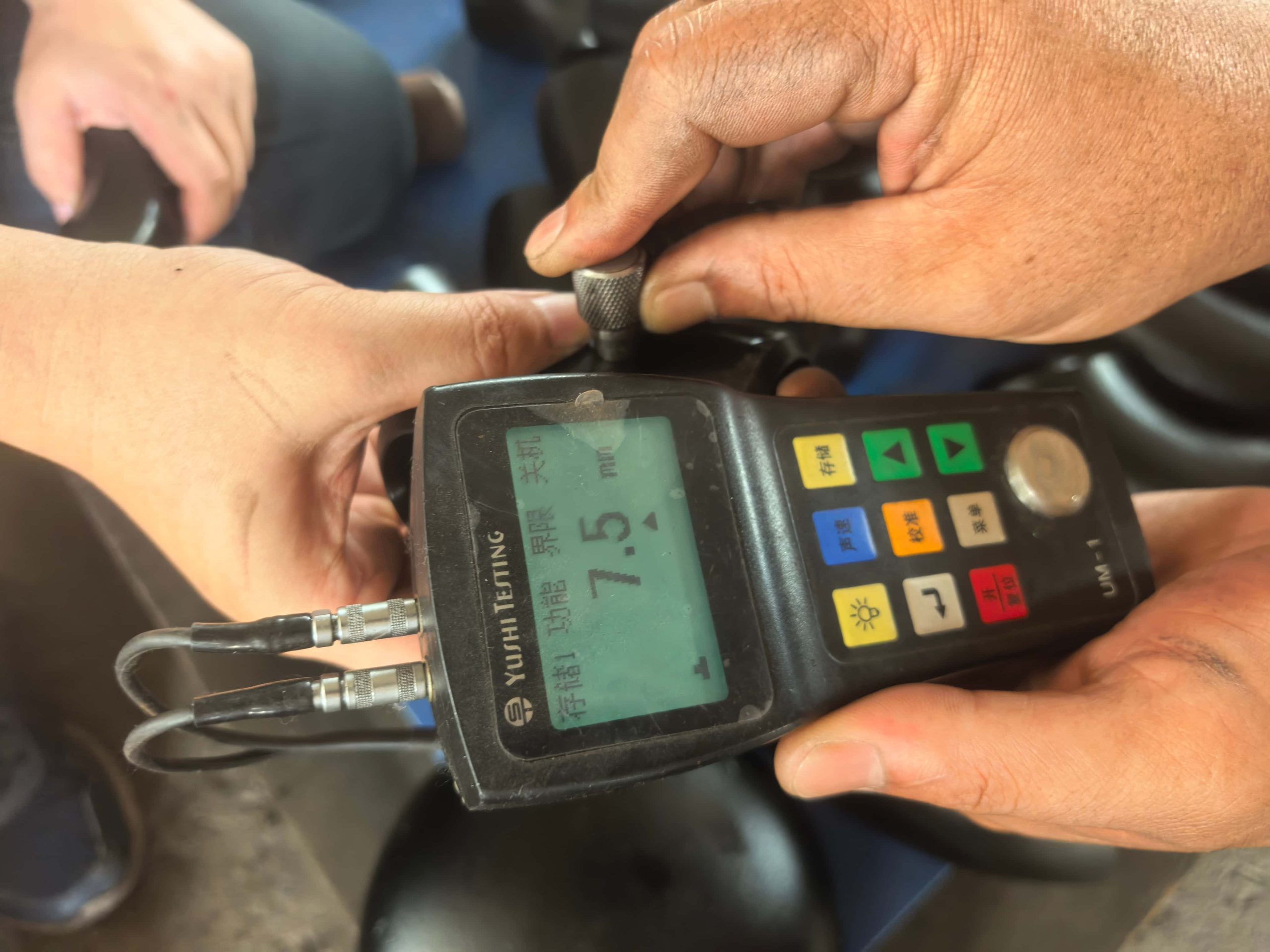

3. Ultrasonic Wall Thickness Measurement: Ensured uniform wall thickness
4. Dimensional Inspection: Checked OD, ID, length, and 90° bending angle

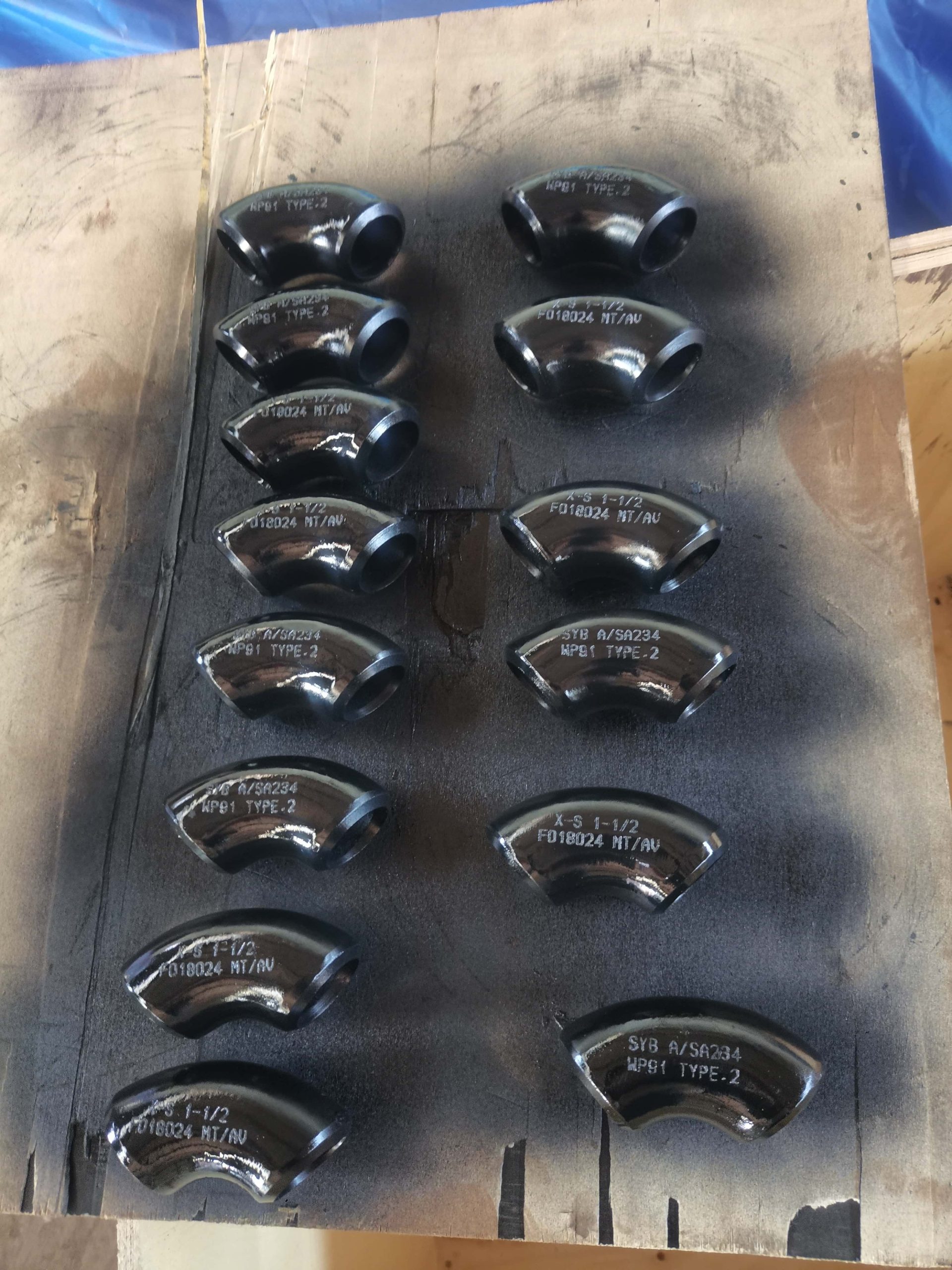

5. Marking Verification: Confirmed all required markings are present and accurate

Applications

• Thermal power plants (main steam pipes, hot reheat pipes)
• Petrochemical high-temperature hydrogenation units
• Catalytic cracking units
• Natural gas high-pressure transmission systems
• Nuclear power plant conventional island piping

Export Destinations

C&N Industrial Limited has exported Alloy Steel Pipe Fittings to over 60 countries including Sudan, UAE, UK, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Madagascar, Angola & Sri Lanka

How to order the ASTM A234 WP 91 Pipe fittings?

Example#1，ASTM A234 WP91  90 Deg. Elbow SR, Seamless, 6 Inch SchXXS

Example#2,  ELBOW ASTM A234 WP 91  type 2 , 90 DEG, SMLS BW  Sch160 MM , 12 INCH

Example#3,  ASTM A234 WP91  90 Degree Elbow,LR  8 Inch, SCH 160
