| Type | : | ASTM A335 P92 Steel pipe |
| Standard | : | ASTM A335 ,ASTM A213, ASTM A691,DIN17175 JIS G3458 |
| Dimension | : | 1/2in to 48in |
| Feature | : | Stock regular sizes, Customized forge, design as per ASME VIII OEM service, Customized heat treatment available. |
A335 P92 Pipe
Description
ASTM A335 P92 Alloy Steel Seamless Pipes
Specification :
| Size | : | 1/8NB TO 24NB IN |
| Standards | : | ASTM A 335, ASME SA 335 |
| Type | : | Seamless |
| Specialized in | : | Large Diameter Size |
| Outer Dimensions | : | 19.05mm – 114.3mm |
| Wall Thickness | : | 2.0mm – 14 mm |
| Length | : | max 16000mm |
| Schedule | : | Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk. |
| Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| Length | : | Single Random, Double Random & Cut Length. |
| Tubing End | : | Plain End, Beveled End, Treaded. |

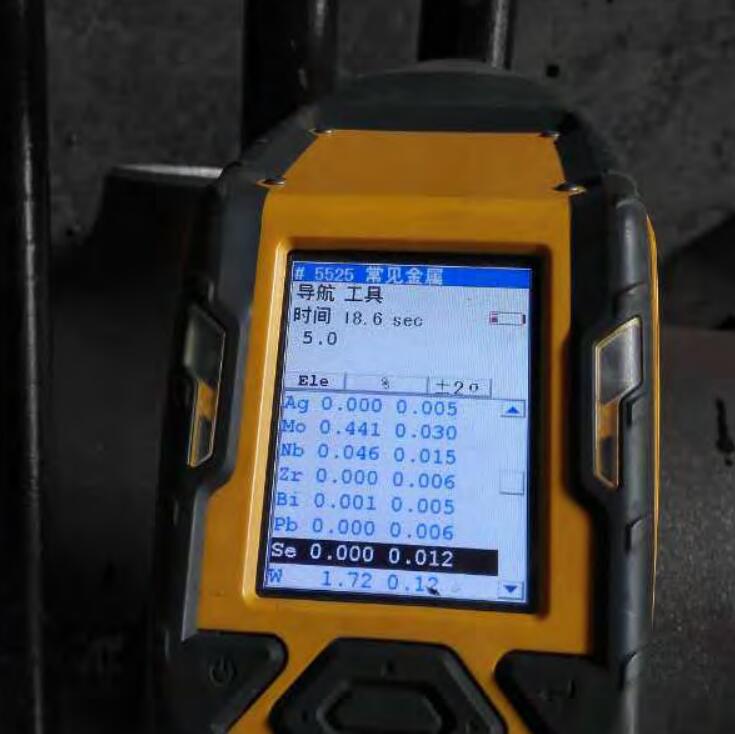

Chemical Compositions :
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
Mechanical Properties :
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 620 min | 440 min | 20 min | 250 max |
Outside Diameter & Tolerance :
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
Wall thickness & Tolerance :
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, % |
| OD≤101.6, WT≤2.4 | +40/-0 | ||
| OD≤101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD≤101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD≤101.6, WT>4.6 | +28/-0 | ||
| OD>101.6, 2.4＜WT≤3.8 | +35/-0 | ||
| OD>101.6, 3.8＜WT≤4.6 | +33/-0 | ||
| OD>101.6, WT>4.6 | +28/-0 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, % | |
| OD≤38.1 | +20/-0 | ||
| OD>38.1 | +22/-0 | ||
| ASTM A530 | NPS | Outside Diameter, inch | Tolerance, % |
| 1/8≤OD≤2-1/2 | +20.0/-12.5 | ||
| 3≤OD≤18, WT/OD≤5% | +22.5/-12.5 | ||
| 3≤OD≤18, WT/OD>5% | +15.0/-12.5 | ||
| OD≥20, WT/OD≤5% | +22.5/-12.5 | ||
| OD≥20, WT/OD>5% | +15.0/-12.5 |
