ASTM A694 F65 Weld Neck Flanges

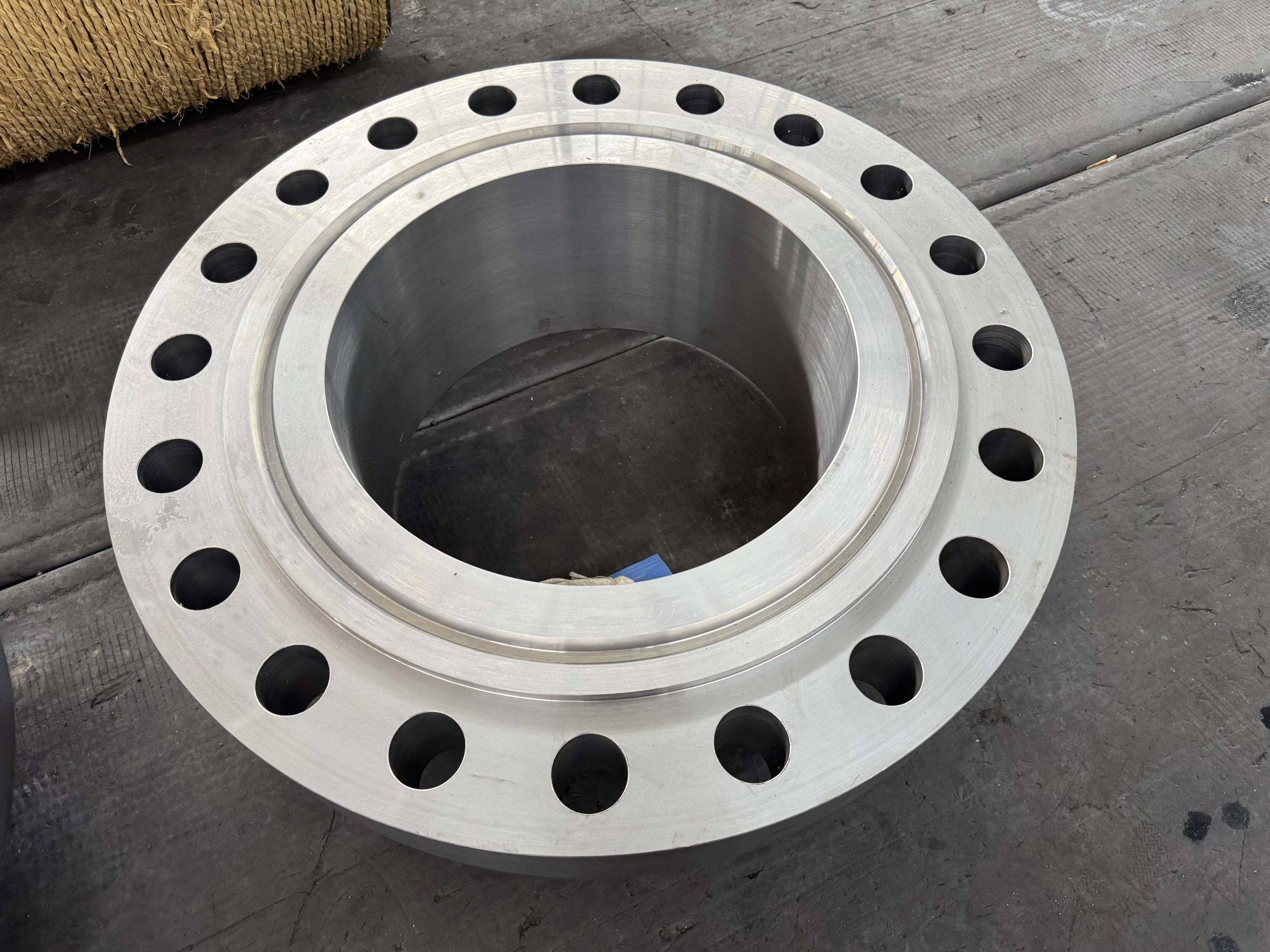

The ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange is a Welding Neck (WN) flange specifically designed for high-pressure pipelines. Its unique long tapered hub optimizes stress distribution, provides a smooth stress transition, and reduces fatigue failure caused by pipeline vibration, thereby enhancing structural stability. Consequently, the ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange is suitable for high-temperature and high-pressure environments. Its specially raised face (RF), typically 1.5–2mm high, enhances gasket compression force, effectively preventing media leakage in engineering applications and ensuring project safety.

To meet the requirements of NACE MR0175, the flange is resistant to sulfide stress cracking and hydrogen-induced cracking, making it suitable for sour gas environments. This ensures the flange’s durability and reliability in oil and gas operations where hydrogen sulfide (H₂S) is present.

ASTM A694 F65 is a specification for carbon and alloy steel forgings for pipe flanges, fittings, valves, and other high-pressure transmission service components. The chemical composition of ASTM A694 F65 is specified to ensure the material’s suitability for its intended application

1.Oil and Gas Transportation:

The excellent mechanical properties of the ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange provide a pressure rating of Class 2500. It is used for high-pressure main lines in onshore/offshore pipelines and compressor station valve connections. Its superior resistance to corrosive media prevents corrosion failure in sour service, extending its service life approximately threefold compared to ordinary stainless steel flanges.

2.Offshore Engineering & Liquefied Natural Gas (LNG):

The ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange resists Chloride (Cl) corrosion from seawater and high-pressure shocks, making it suitable for subsea pipeline connections. It maintains toughness at cryogenic temperatures down to -162℃, making it the optimal choice for valve flanges in LNG receiving terminals.

3.Chemical & Energy Heavy-Duty Equipment:

The Silicon content in the ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange enables stability under high-temperature conditions. In power plant boiler systems and high-pressure steam line sealing applications, it supports long-term sealing integrity under thermal cycling stress.



ASTM A694 F65 Flanges Chemical Compostion and Properties

Chemical Composition of ASTM A694 F65,Heat Analysis,%
Carbon [C] ≤0.30
Manganese [Mn] ≤1.60
Phosphorus [P] ≤0.025
Sulfur [S] ≤0.025
Silicon [si]    0.15-0.35

ASTM A694 F65 Flanges Mechanical and Physical Properties

The mechanical properties of grade A694 F65 Flange are displayed in the following table.
ASTM A694 Grade Yield Strength min.    Tensile Strength min. Elongation
MPa ksi MPa ksi %
A694F65 FLANGES 450 65 530 77 20

Density For ASME SA 694 F65 Forged Flanges

  • 7.8 – 7.9 g/cm³

During manufacturing, vacuum degassing is employed to reduce inclusions, and a normalizing and tempering heat treatment process is used to refine the grain structure. These processes ensure the ASTM A694 F65 WN RF NACE MR0175, ASME B16.5 flange possesses resistance to Sulfide Stress Cracking (SSC) and Hydrogen Induced Cracking (HIC), guaranteeing safe service life in sour (acidic) media environments.

A694  F65  Allowable  Stress
100°F 200°F 300°F
24.0 ksi 21.9 ksi 21.3 ksi
400°F 500°F 600°F
20.6 ksi 19.5 ksi 17.7 ksi
650°F 700°F
17.5 ksi 17.3 ksi 一
Refer Hardness of ASME SA 694 F65 Plate and Lap Joint Flange,Available in Class
150 To 2500 With Material Test Certificates
Impact Test Of ASTM A694 F65 ASME B16.5
℃(minimum) F(minimum)
-29 -20
